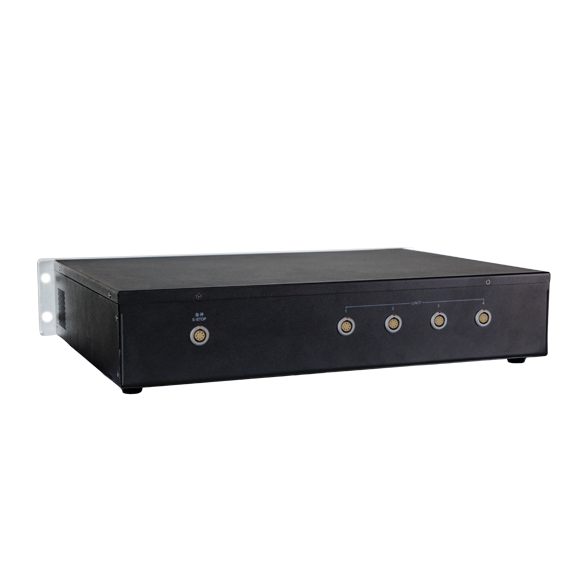

FINE DAX ECB 4
OVERVIEW
FINE DAX ?ECB (Emergency-Stop Combiner), also known as emergency stop combiner, connects multiple PDUs (power distribution units) in series to achieve the emergency stop device (ESR) that can control the crane by connecting the series PDUs. Stop the circuit and ensure the normal operation of the FINE DAX system.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
Input port: 1 channel
Output port: 4 channels
Working voltage: DC24V
Product size: 483 x 218 x 98
Weight: 5 kg
Input port: 1 channel
Output port: 4 channels
Working voltage: DC24V
Product size: 483 x 218 x 98
Weight: 5 kg
