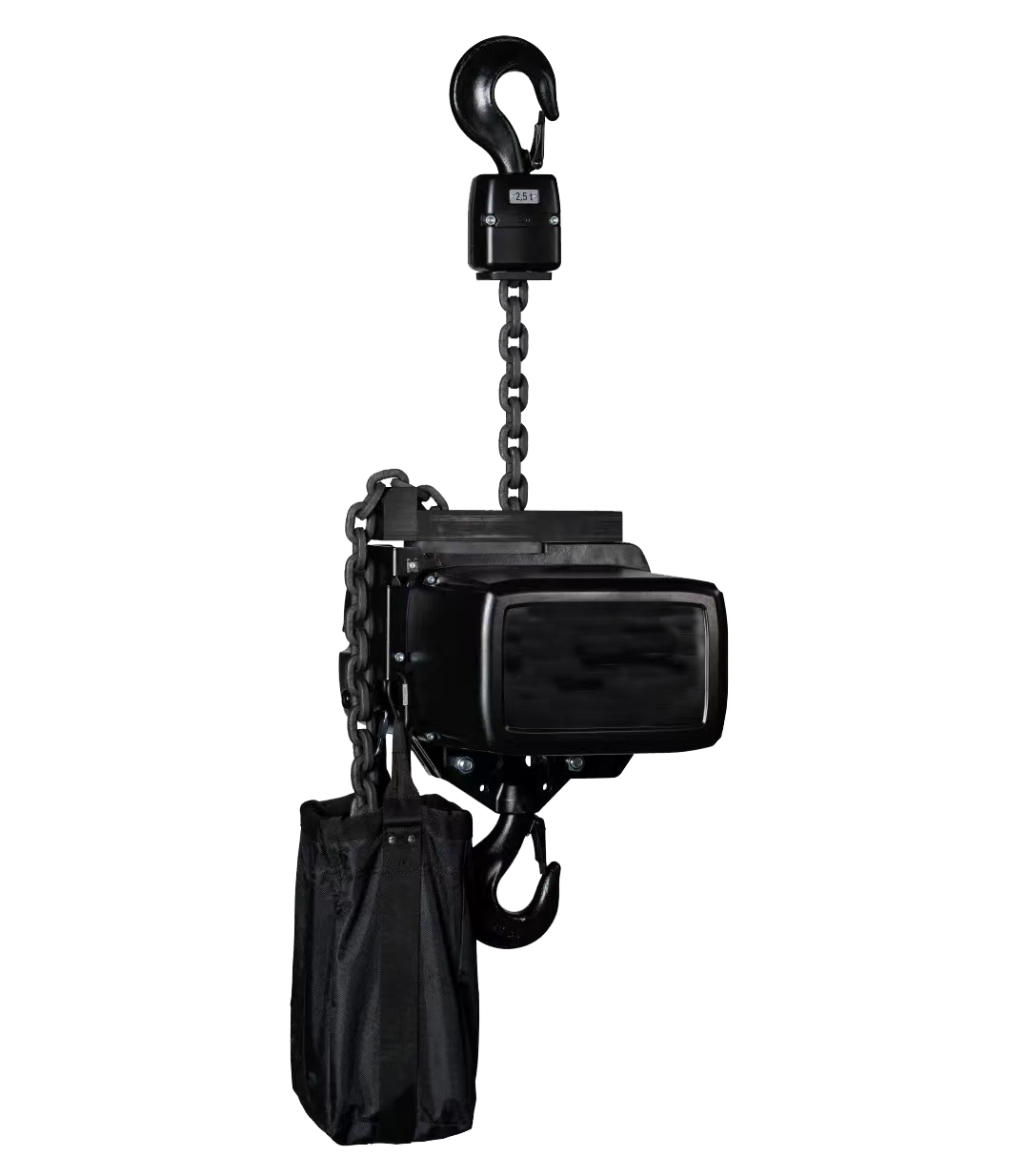

FINE DAX H500 chain hoist
OVERVIEW
FINE DAX H500 chain hoist is a 400kg load-bearing chain hoist imported from Europe. It has superior performance and response speed. It can be used in conjunction with the VSC axis controller independently developed by Caiyi, so that the hoist can be programmed for objects , for high-precision motion. The fastest running speed can reach 32m/min, the safety standard can reach D8+, and the safety factor can reach as high as 12:1. And a built-in weighing device, the weight of the hoist can be monitored through the software to ensure the safe use of the hoist.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
Input voltage: 3/380/ 50Hz
Rated power: 2.3KW
Rated load capacity: ≤400 kg
Maximum speed: ≤32 m/min
Safety standard: D8+
Linear position error ≤1mm
Electromagnetic brake: 2
Absolute encoder: 2
Travel limit: 4
Safety factor: 12:1
Built-in weighing scale: 1
Input voltage: 3/380/ 50Hz
Rated power: 2.3KW
Rated load capacity: ≤400 kg
Maximum speed: ≤32 m/min
Safety standard: D8+
Linear position error ≤1mm
Electromagnetic brake: 2
Absolute encoder: 2
Travel limit: 4
Safety factor: 12:1
Built-in weighing scale: 1
Weight: 51 kg
IP RATE: IP 65
Weight: 51 kg
IP RATE: IP 65

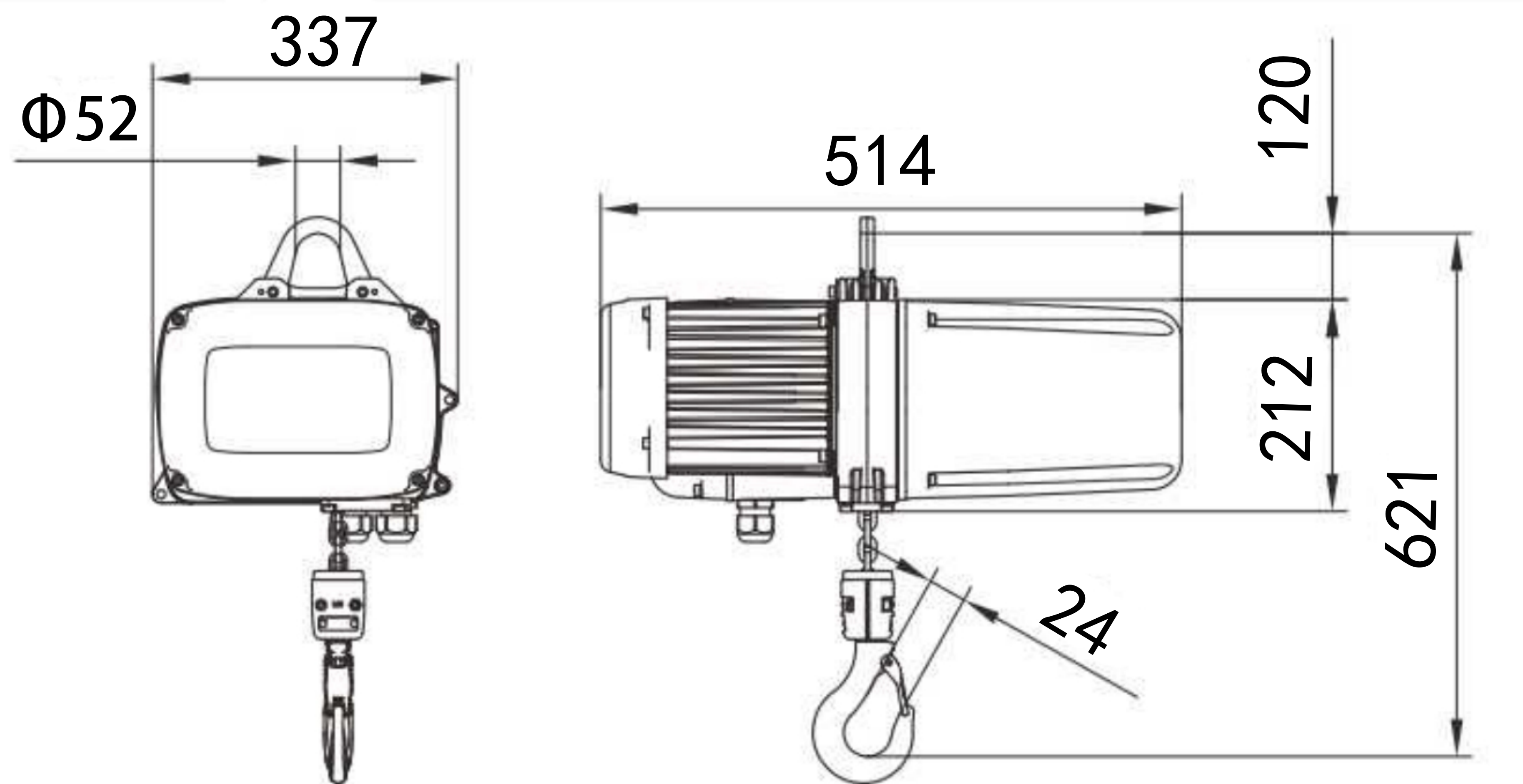

DIMENSIONS
