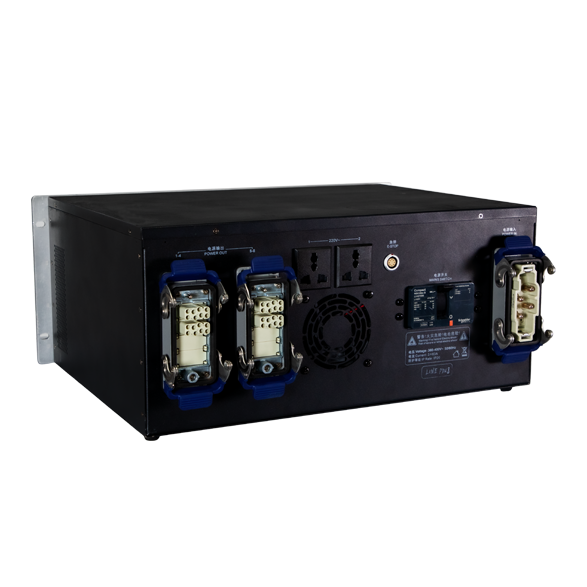

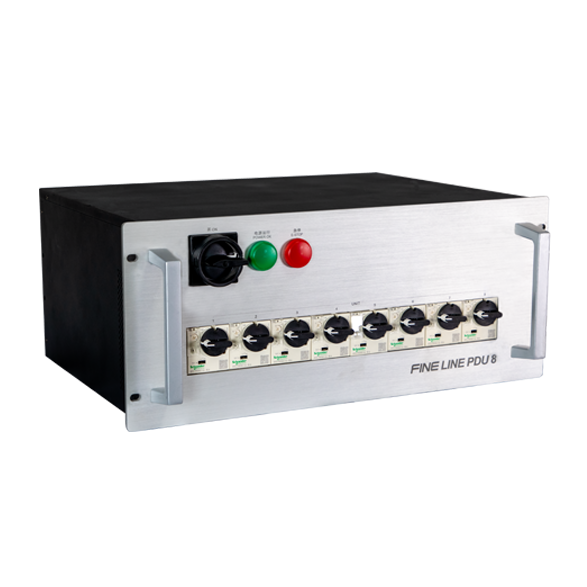

FINE DAX PDU 8
OVERVIEW
FINE DAX PDU (Power Distribution Unit), also known as power distribution unit, distributes the output current from the three-phase five-wire circuit to the terminal power distribution equipment of each FINE DAX device by connecting to BOB (Branch Box). As an important guarantee for the safety of electricity use in the computer room, the stability and safety of PDU (Power Distribution Unit) equipment is directly related to the safety of electricity use of the CNC hoist system equipment and even the entire cabinet.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
Input voltage: 380-400VAC 50/60Hz
Input current: 3x63A
Input connection: 1 group
Input voltage: 380-400VAC 50/60Hz
Input current: 3x63A
Input connection: 1 group
Output connection: 2 groups x 4 channels
Output current: 10A per channel
Auxiliary output: 220V
Signal port: 1 channel
Output connection: 2 groups x 4 channels
Output current: 10A per channel
Auxiliary output: 220V
Signal port: 1 channel
Product size: 483 x 420 x 210
Weight: 18 kg
IP rate: IP 20
Product size: 483 x 420 x 210
Weight: 18 kg
IP rate: IP 20
GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
Drawings
FINE DAX PDU 8 CAD Drawings
2024-09-23
