FINE iSPOT PILOT

OVERVIEW

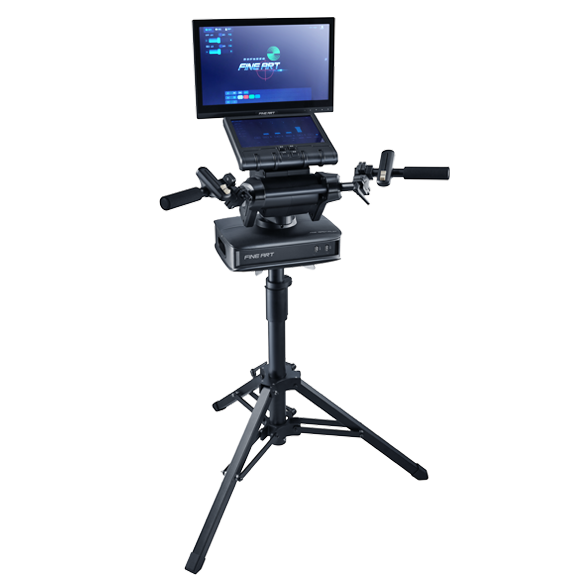

FINE iSPOT PILOT ground follow system was born, which solves the problem of traditional light tracking control. For stadiums, indoor theaters, concert halls, TV studios and other places that require high-altitude operations or limited space, it can be realized only on the ground Simultaneously control multiple follow spot lights to easily achieve the follow light effect that traditional follow spot lights cannot achieve, thereby reducing equipment installation time and operating costs.

TECHNICAL SPECIFICATION

FEATURES

Remote light tracking technology

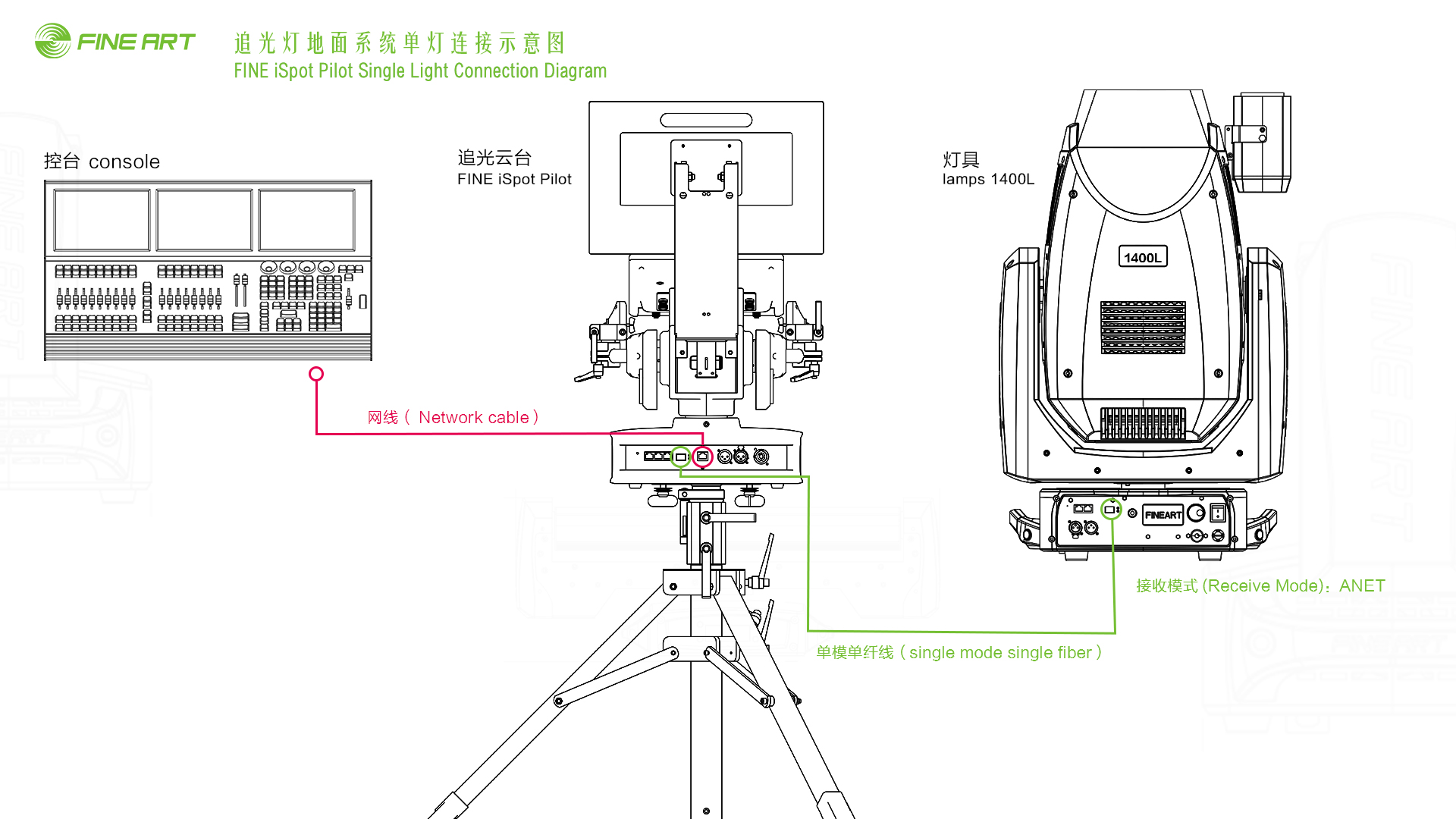

Long distance, fiber optic cabling, low latency
Real-time tracking cursor and target cursor
Support import/export light library, show files

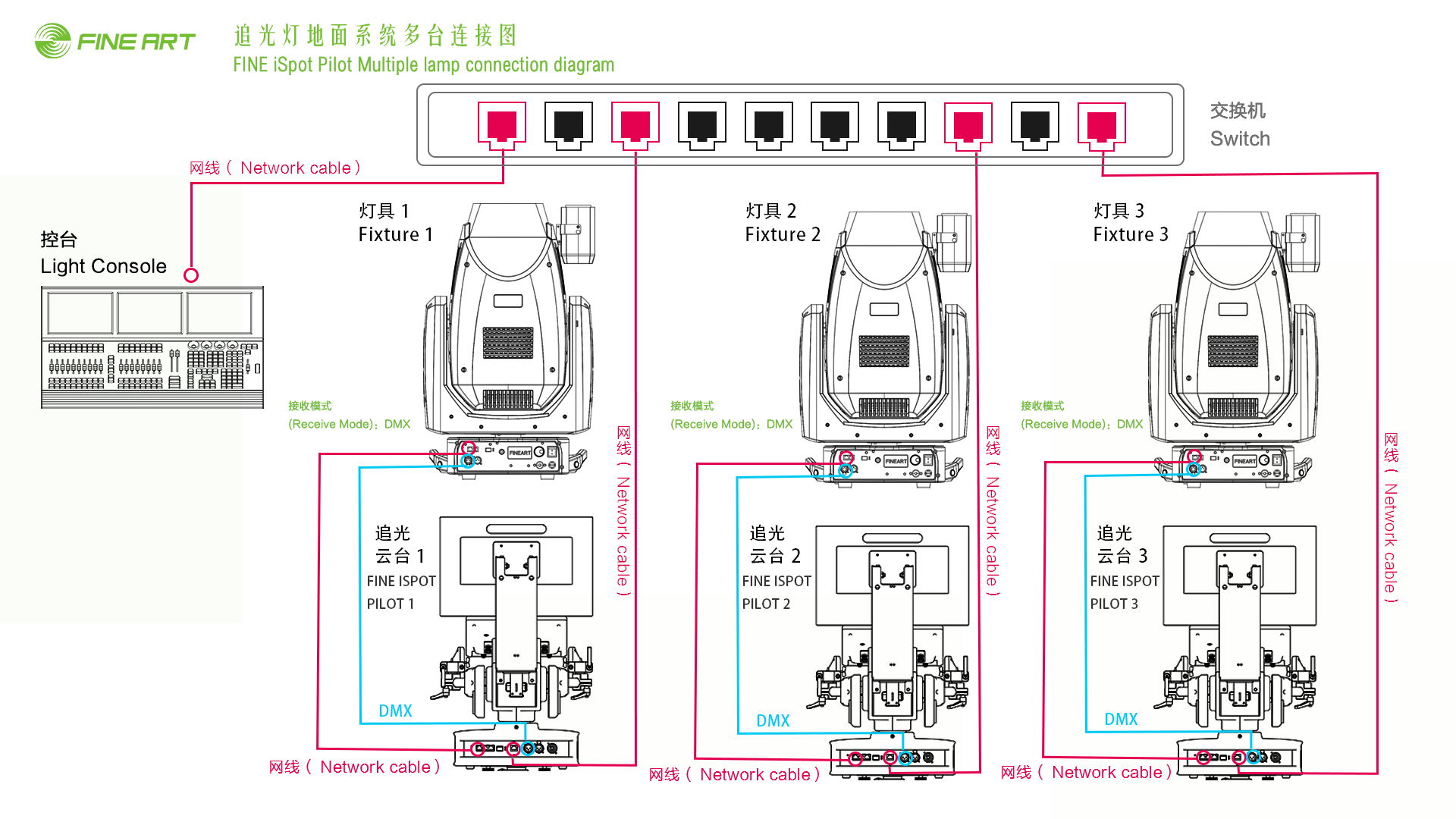

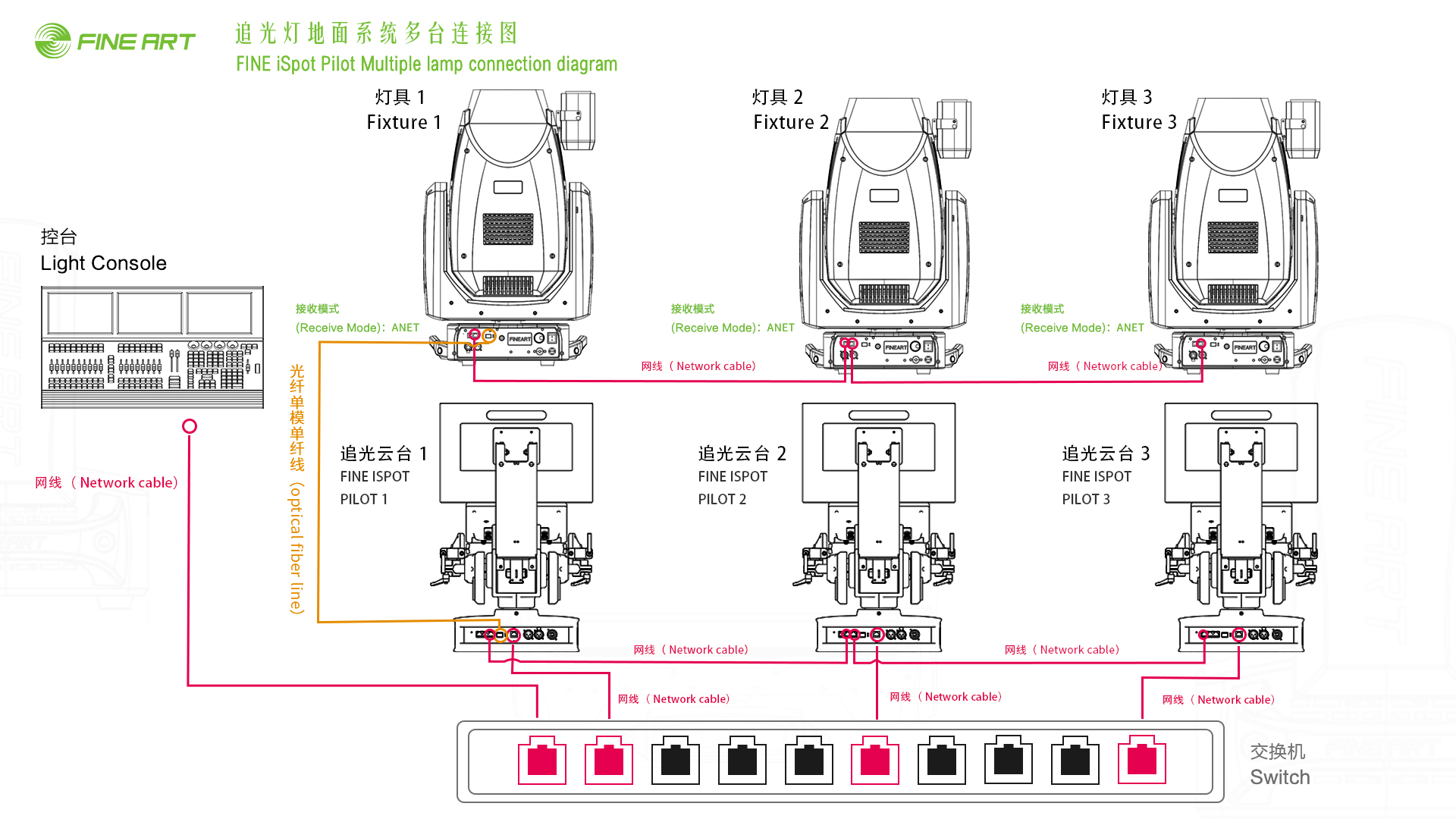

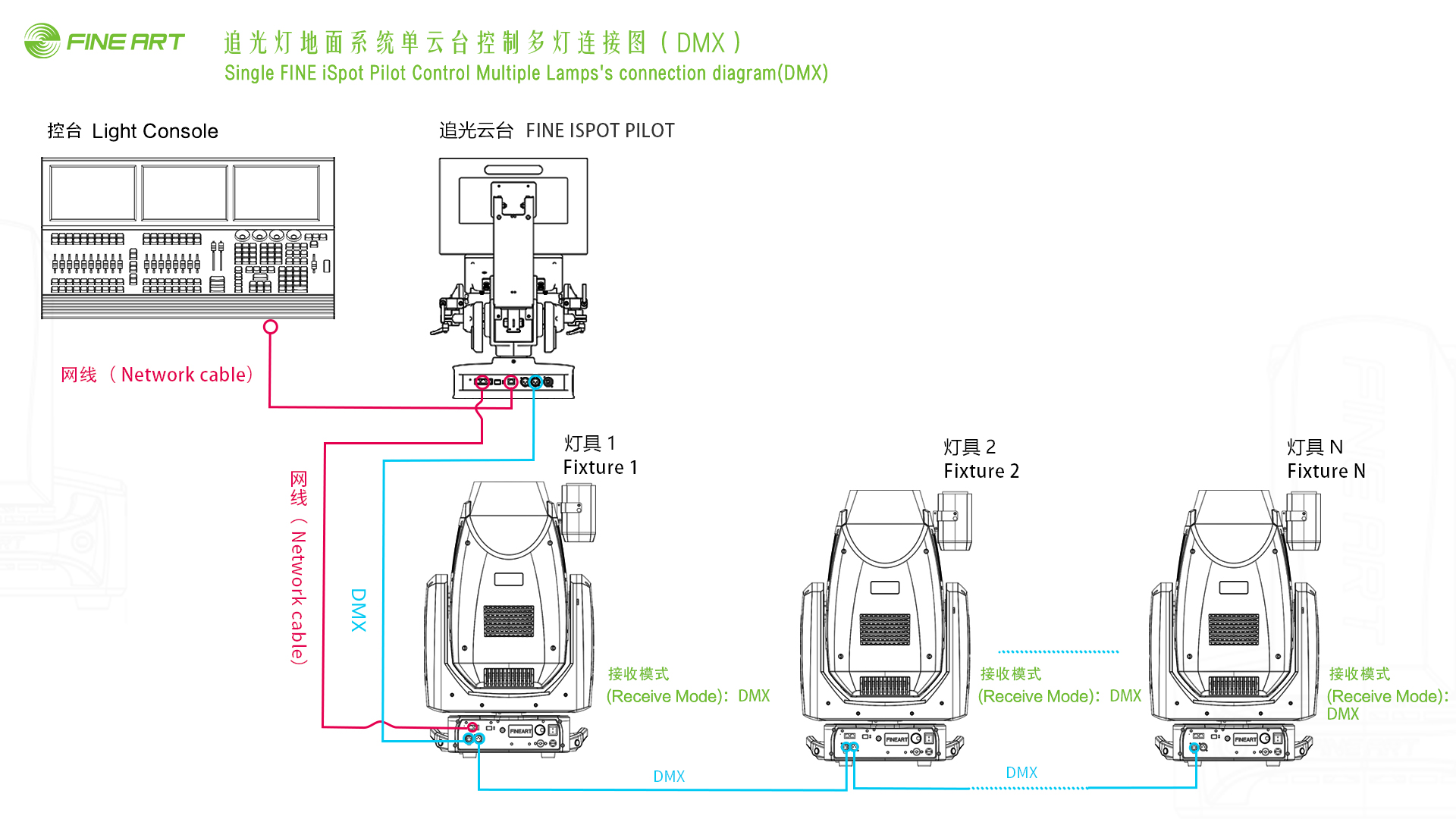

Multi-device control, can support 12 devices to track the same target

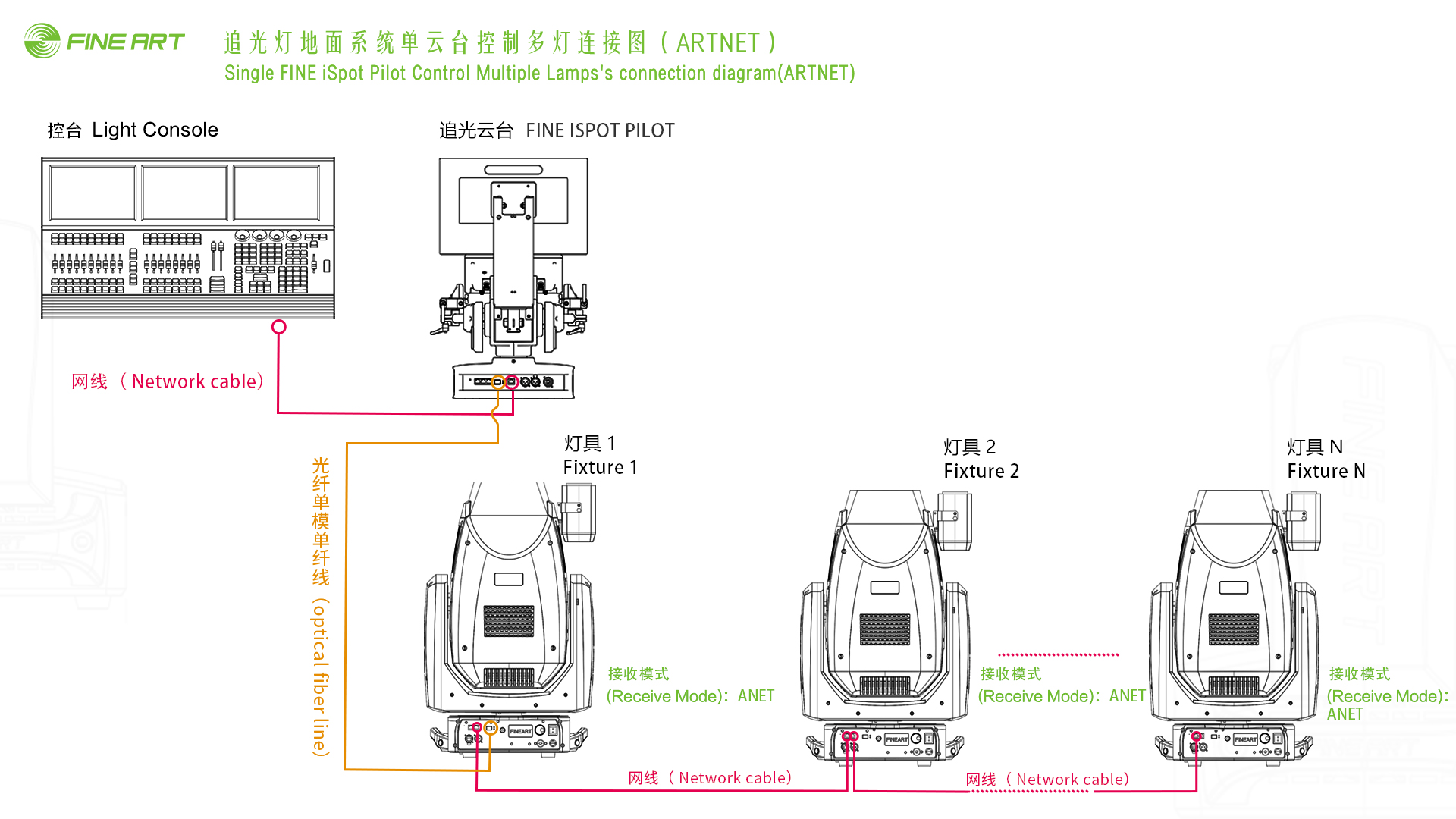

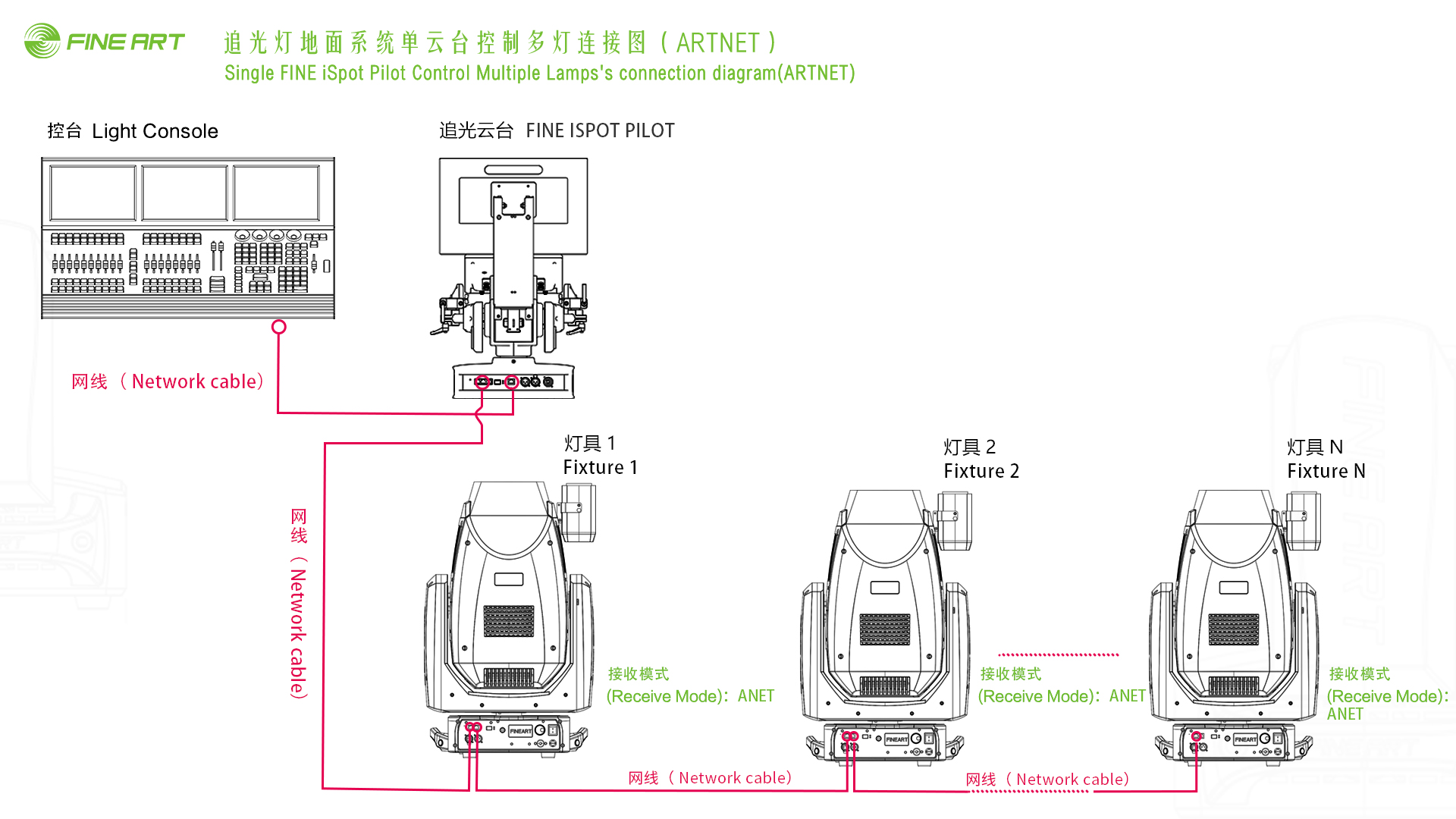

Support ART-Net to connect to Tekmand, MA and other consoles to control the function of tracking equipment
Support PosiStageNet (PSN) protocol
Multi-light height mode, realize the height of the light spot can be adjusted freely when encountering stairs
The storage of color material and position material under multi-device is independent from that of single light
Technical lamps: FINE1700LH iSPOT\ FINE1400LH iSPOT\ FINE2000LH iSPOT and FINE iSPOT EYE+ arbitrary moving head lights

Remote light tracking technology
Long distance, fiber optic cabling, low latency
Real-time tracking cursor and target cursor
Support import/export light library, show files
Multi-device control, can support 12 devices to track the same target
Support ART-Net to connect to Tekmand, MA and other consoles to control the function of tracking equipment
Support PosiStageNet (PSN) protocol
Multi-light height mode, realize the height of the light spot can be adjusted freely when encountering stairs
The storage of color material and position material under multi-device is independent from that of single light
Technical lamps: FINE1700LH iSPOT\ FINE1400LH iSPOT\ FINE2000LH iSPOT and FINE iSPOT EYE+ arbitrary moving head lights

SHAKE PARAMETERS

X-axis movement range: -80~80°
Y-axis movement range: -40~40°

X-axis movement range: -80~80°
Y-axis movement range: -40~40°

CONTROL AND PROGRAMMING

Tracking Control: Manual
Touch input; 15.6-inch, 10.1-inch capacitive touch screen human-computer interaction
4 physical command buttons
4-way custom encoder
2-way entity attribute adjustment push rod L=60mm
Support PosiStageNet (PSN), Art-net, RDM, DMX512 protocols

Tracking Control: Manual
Touch input; 15.6-inch, 10.1-inch capacitive touch screen human-computer interaction
4 physical command buttons
4-way custom encoder
2-way entity attribute adjustment push rod L=60mm
Support PosiStageNet (PSN), Art-net, RDM, DMX512 protocols

ELECTRONIC CONTROL TECHNOLOGY

Optical fiber communication technology, communication distance, low delay;
Support USB system software upgrade;Support ART-Net to connect Tekmand, MA and other lighting consoles for collaborative operation;16-bit industrial-grade encoder, accurate and reliable positioning

Optical fiber communication technology, communication distance, low delay;
Support USB system software upgrade;Support ART-Net to connect Tekmand, MA and other lighting consoles for collaborative operation;16-bit industrial-grade encoder, accurate and reliable positioning

ELECTRICAL AND INTERFACE
